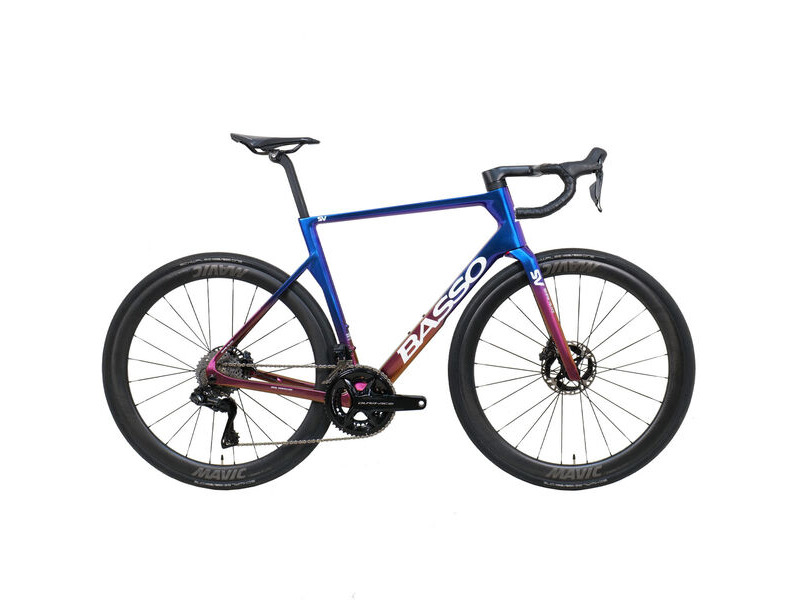

Sempre Veloce. Always Fast. The comfort performance frameset from
Basso where aerodynamics lightness and efficiency are infused with
comfort and adaptability transforming every rider into the fastest
version of themselves.
The SV occupies the space between Racing
and All-road representing a new standard in road cycling. By combining
race level performance with the adaptability and comfort that everyday
riders demand. Resulting in a bike that doesn't force compromises and a
machine that thrives on any road with any rider in any situation. The
Diamante Seatpost paired with a high stack and sloping geometry
combination enhances comfort on rough terrain and helps reduce fatigue
during long rides. The seatpost features an updated saddle clamp and
increased length of 380 mm.

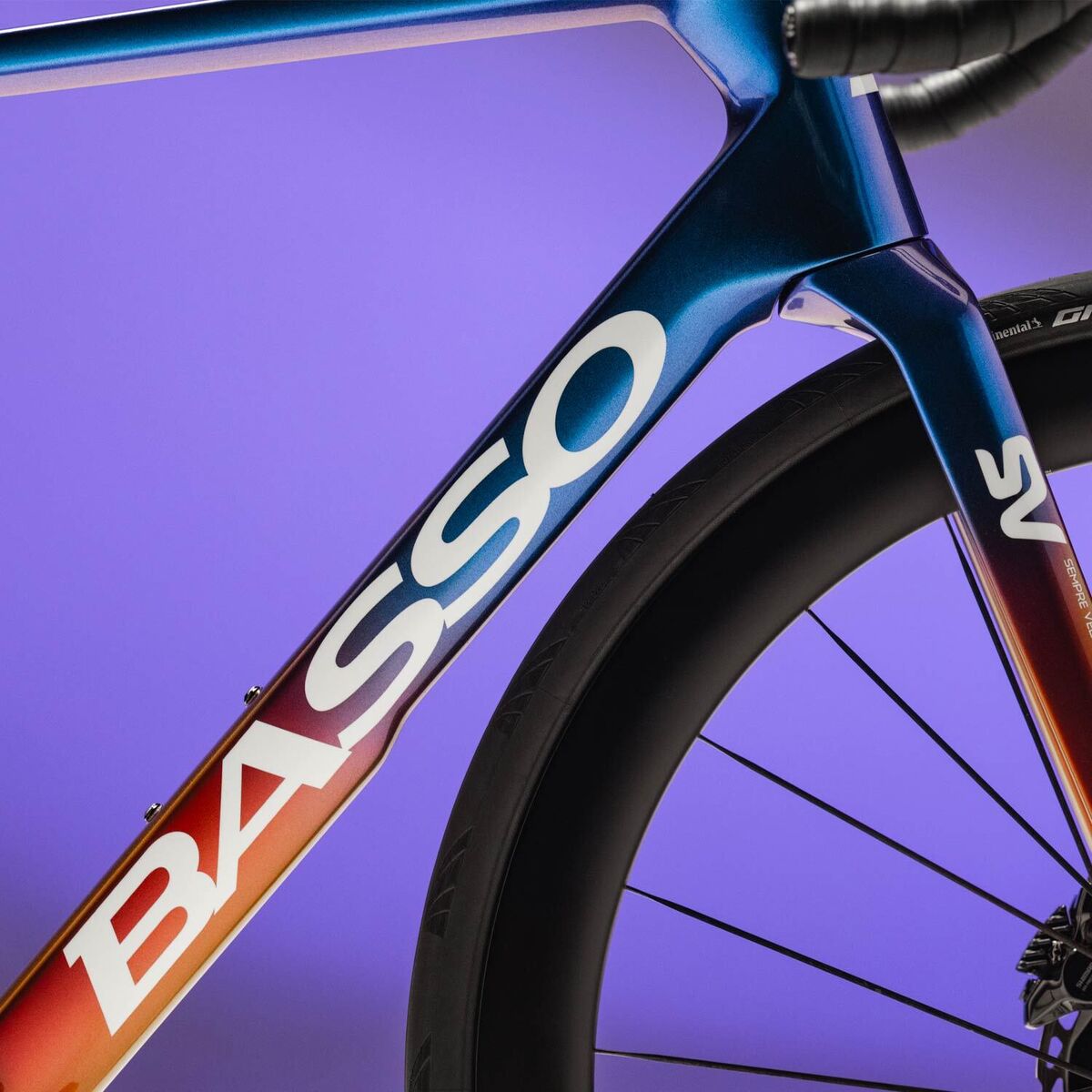

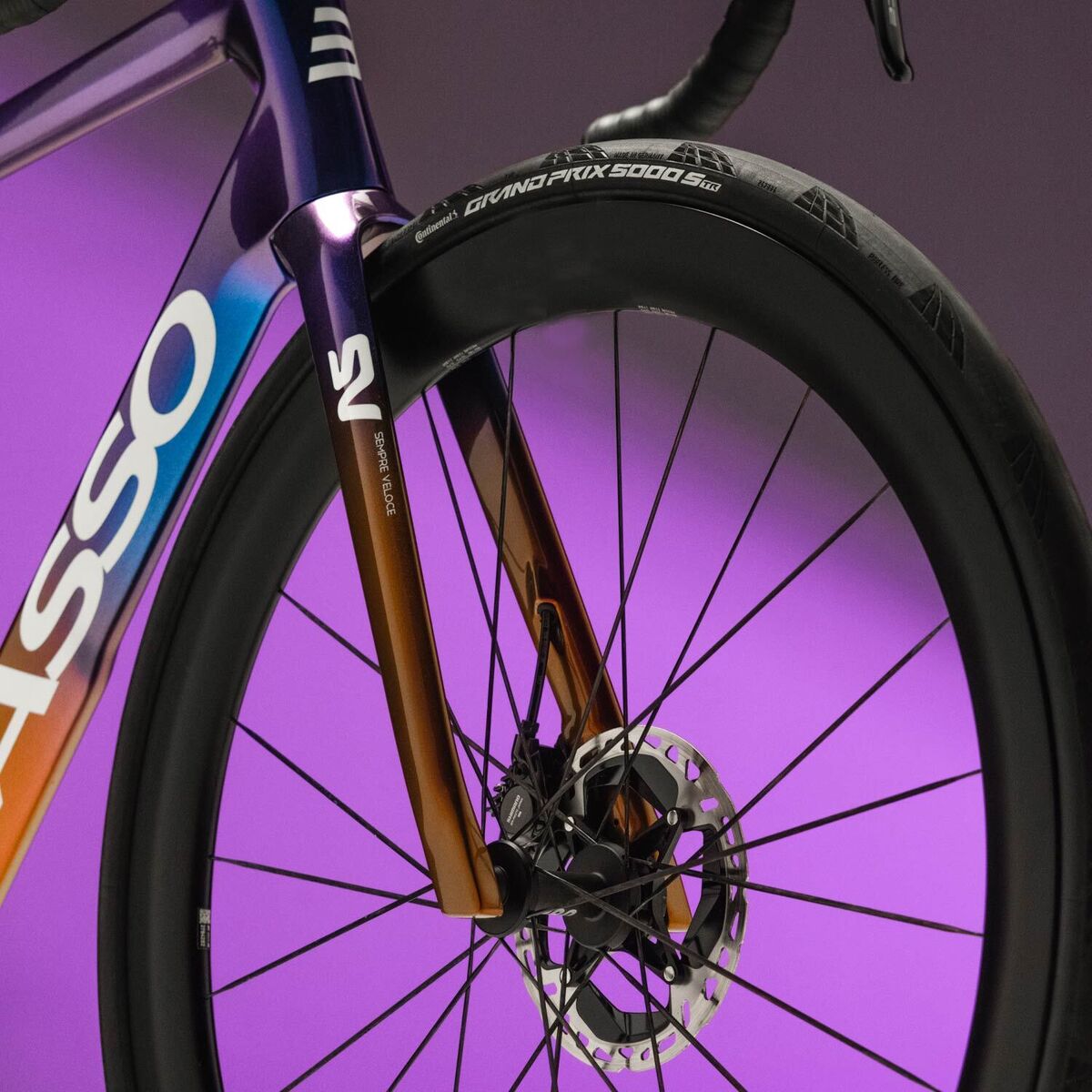

With a focus on enhancing
aerodynamics the front impact area has been reduced by 16% in
comparison to the Diamante SV. The front wheel is seamlessly integrated
into the downtube plus the confirmed optimal tyre width option is 32mm
to achieve the minimum airflow disruption. The 85.6 mm BB width provides
a wide base for the downtube and chainstays while the deep headtube
design (67.9 mm) further improves handling precision especially at high
speeds and torque.

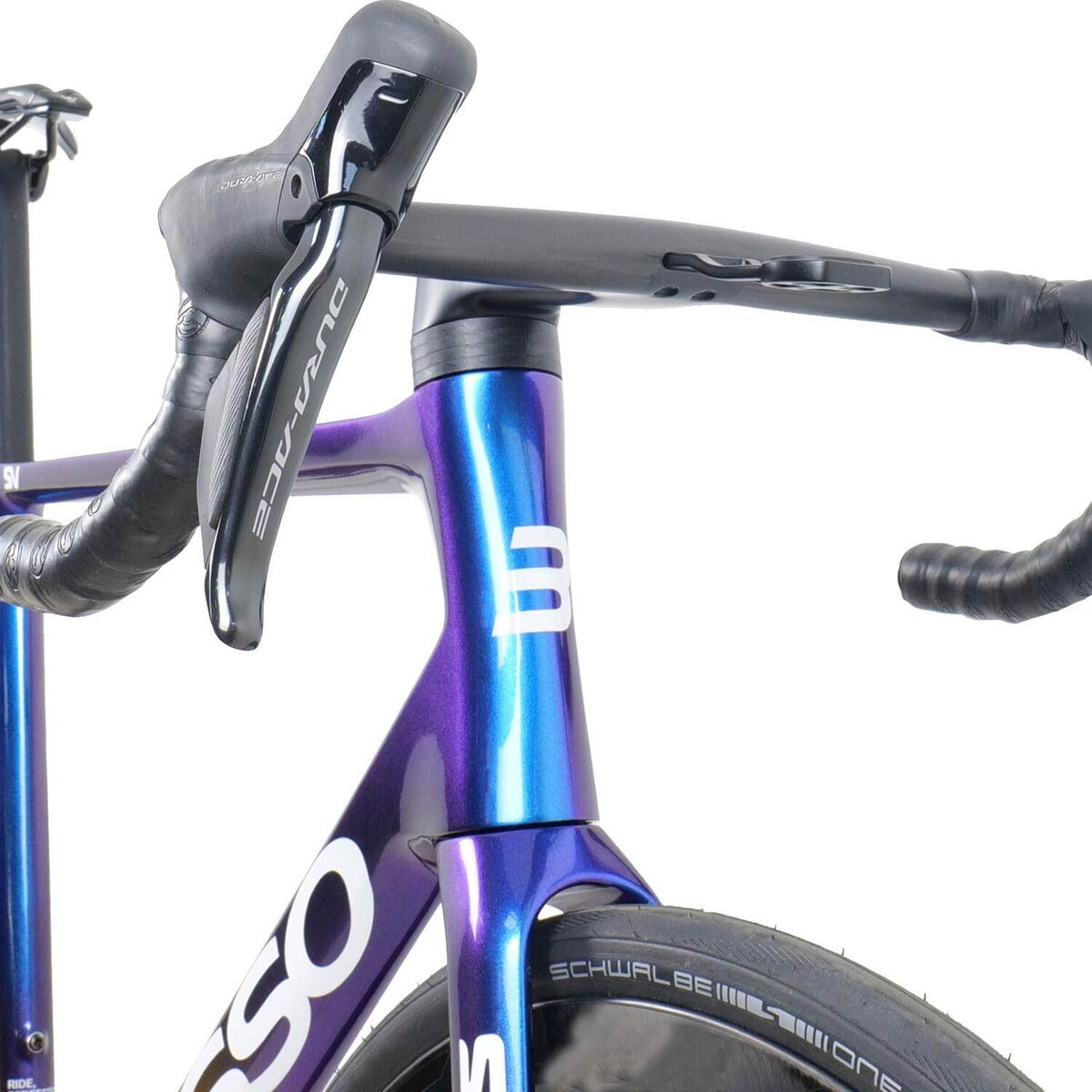

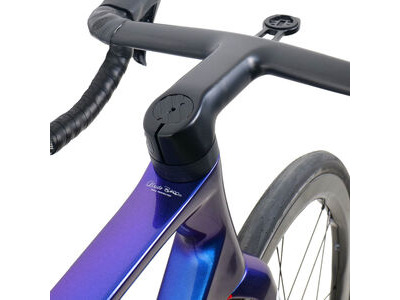

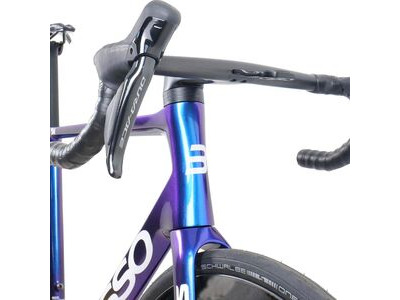

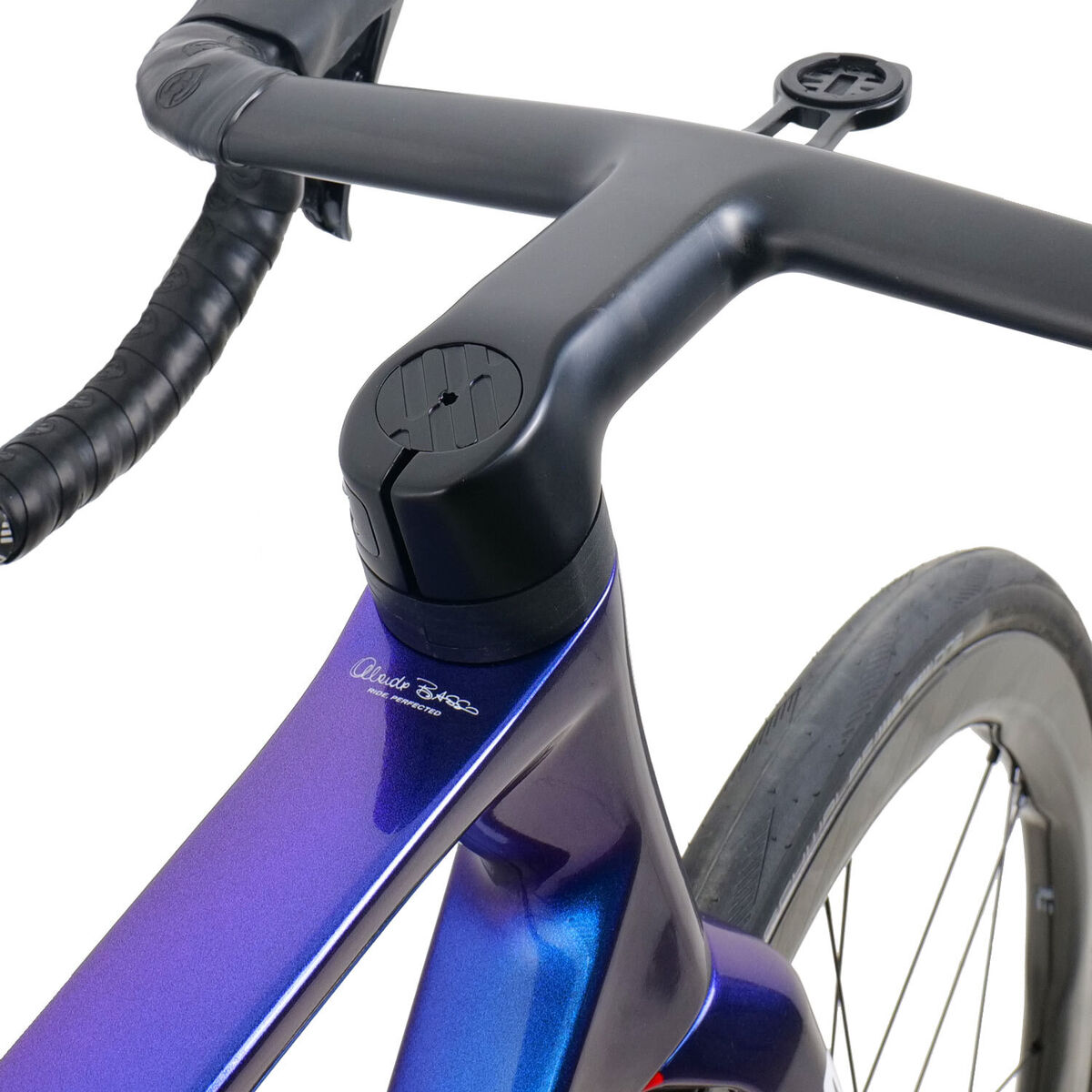

Features - Fuga Integrated Handlebars:
Optimised for an aerodynamic performance fit. Featuring 1 degree back
sweep and down sweep for enhanced comfort and neutral wrist position.
Compatible with all Basso Carbon frames. - Tyre clearance comfort meets modern design:
Supporting tyres up to 35mm on 25mm internal rim width offering riders
exceptional balance between speed confidence and safety on all

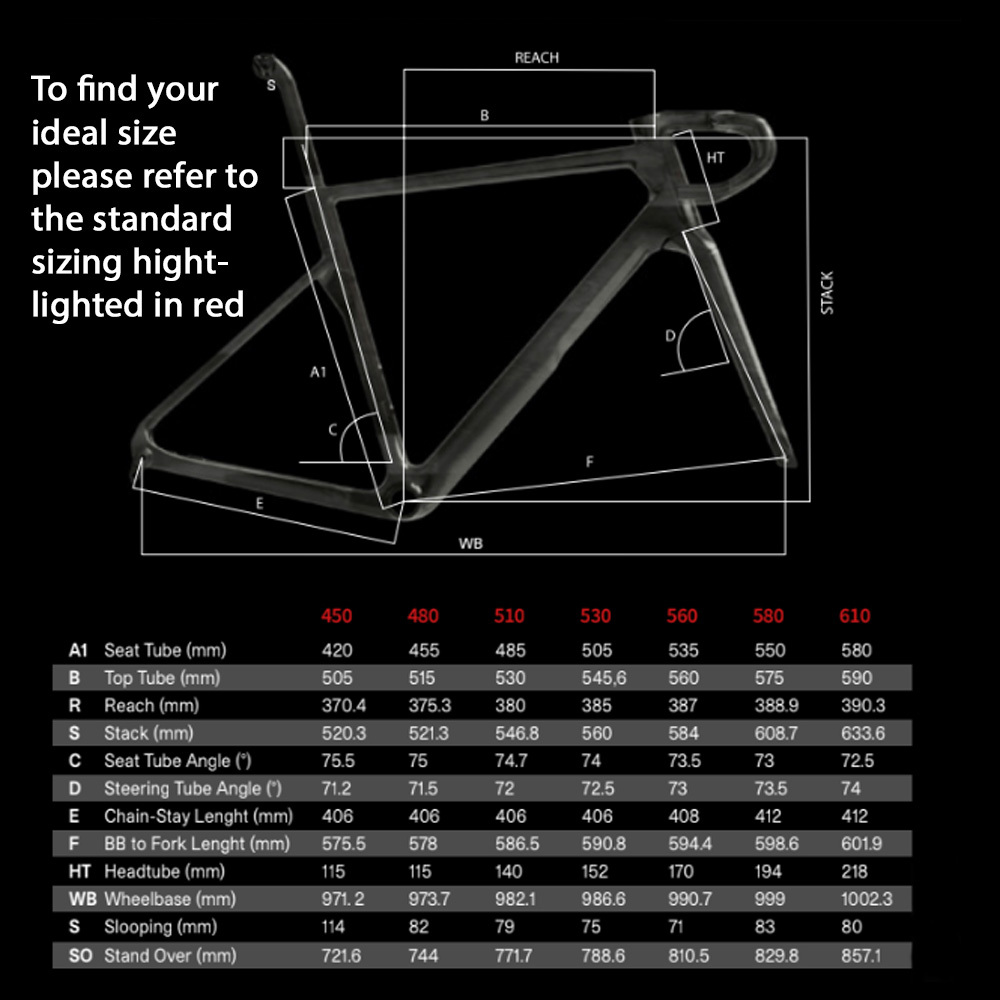

surfaces. - Precision meets versatility: Seven
frame sizes with overlapping ranges to ensure a tailored fit for every
rider. High stack and sloping geometry 25mm shorter seat tube compared
to more traditional Basso geometry - Solid oil bearings:
These bearings offer 3 times the durability of traditional bearings.
With extended lubricant life resistant to washout and superior
protection against contaminants they ensure smoother handling and a
long lasting performance. - Universal Derailleur hanger (UDH) for easy access to replacement hangers.
- 3B Clamp System Gen 2:
A totally hidden seatpost fixing solution that is invisible on the
frame intertwining technological and aesthetic innovation. This
lightweight and strong integrated clamping solution offers the
additional benefit of an anti-vibration function further improving your
riding experience by elevating comfort on uneven and bumpy surfaces.
Frame Specs
- Sizes: XXS (45) XS (48) S (51) M (53) L (56) XL (58) XXL (61)
- Fuga Handlebar: XXS (80x370) XS (90x370) S (100x370) M (110x370) L (120x370) XL (120x370) XXL (130x370)
- Compatible with electronic groupsets only
- Cable integration: Fully integrated
- Material: Torayca T1100 and T1000 intermediate module carbon fibre
- Bottom bracket: BB86 86.5 x 41
- Headset: Fully Integrate
- Tyre Clearance: Up to 35mm
- Thru axles: 100/142mm x 12mm (125x165mm)
- Frame weight: 780g
- Fork weight: 370g
- Handlebar weight: 300g
- Warranty: Covered under Basso's 5 year warranty
- Made in Italy

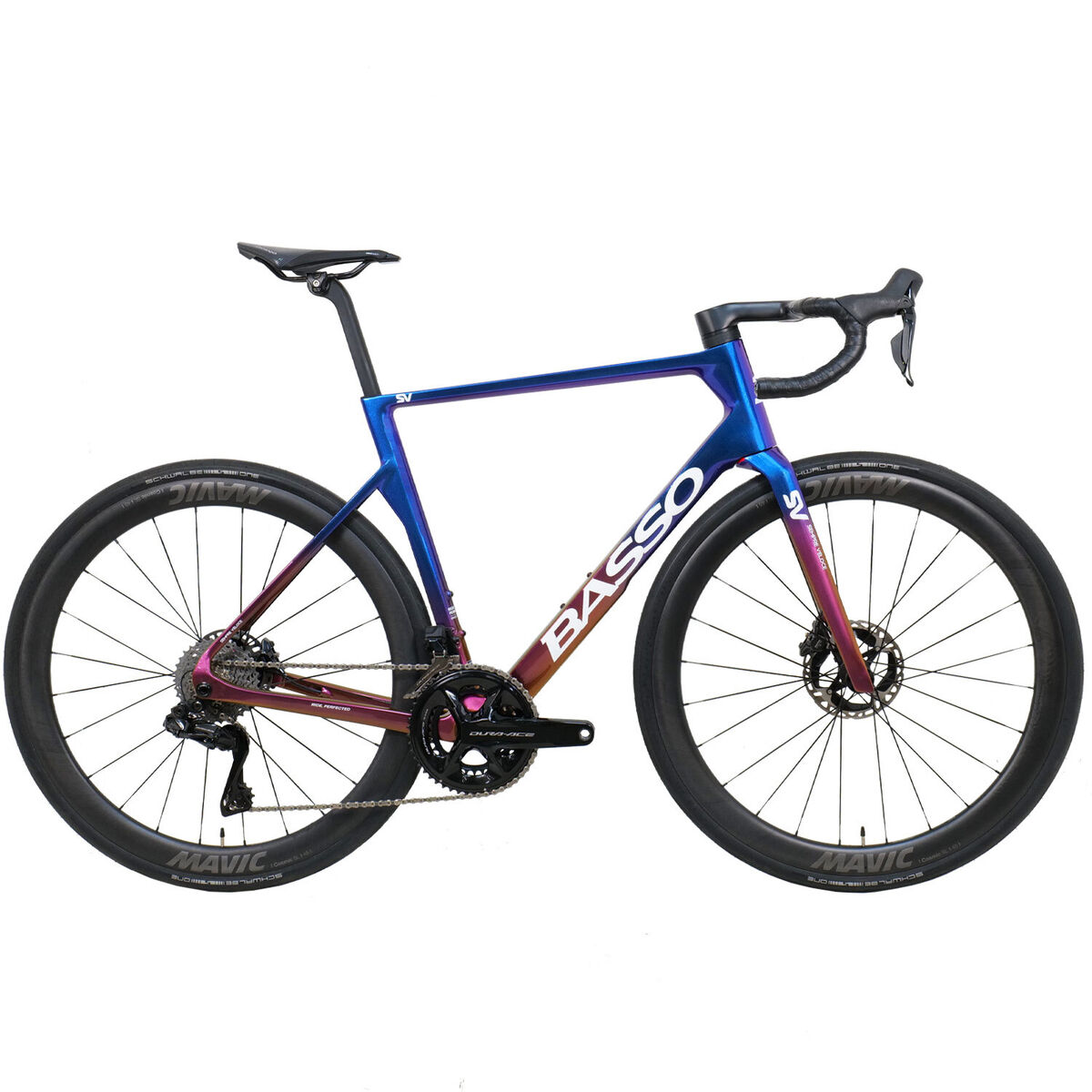

Bike Specifications:
- Components: Shimano Dura-Ace Di2 12x

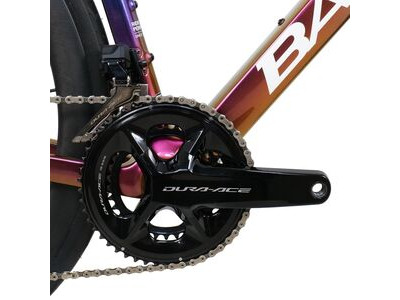

- Chainset: Shimano Dura-Ace Di2 12x
- Disc Brakes: Shimano Dura-Ace Di2 12x Hydro
- Disc Rotors: Shimano Dura-Ace Ice Rotors 140/160mm
- Cassette: Ultegra 12x
- Chain: KMC 12x Silver/Black
- Saddle: Prologo Dimension RS
- Handlebar/Stem: Basso Fuga Integrated
- Seatpost: Basso Integrated

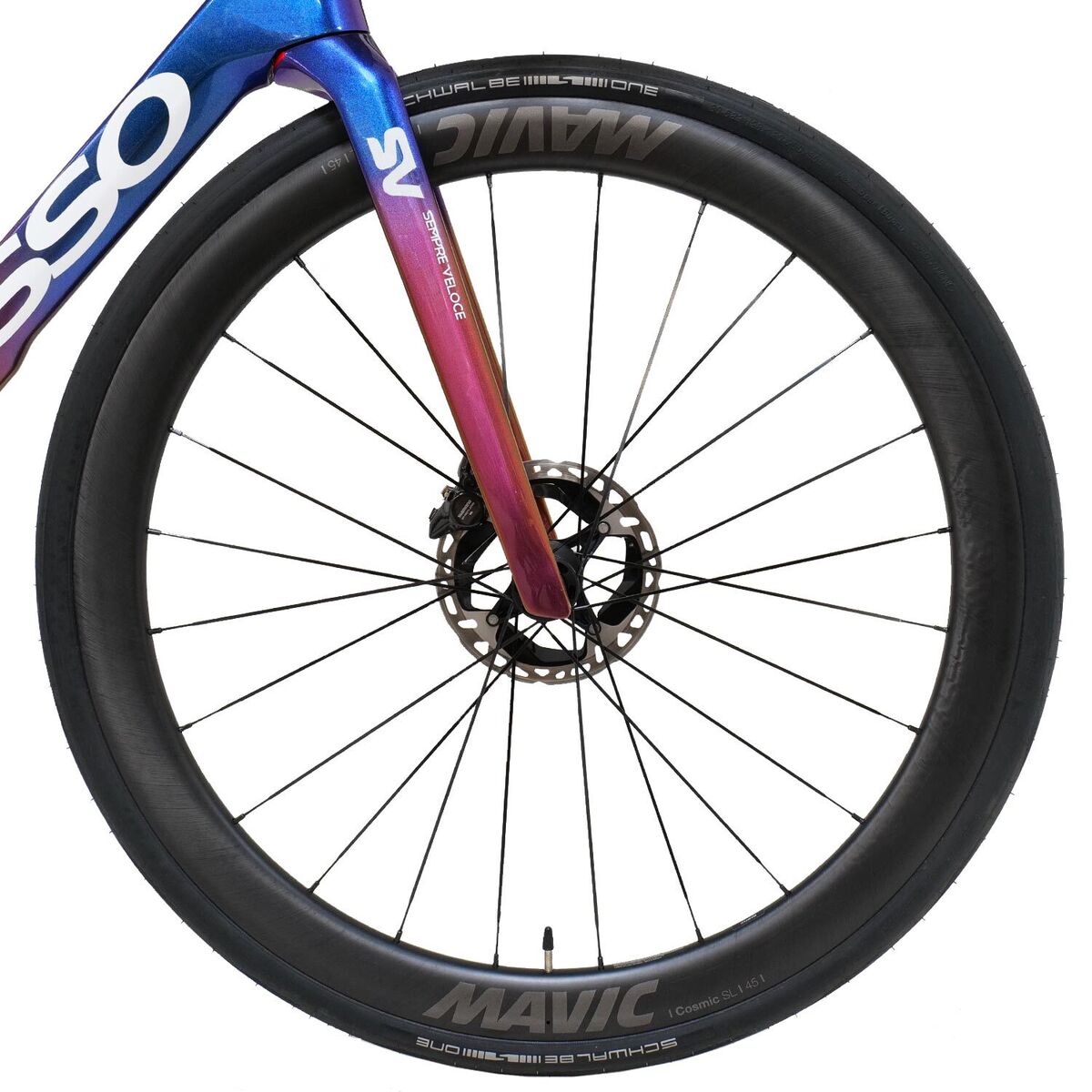

- Wheelset: Mavic Cosmic SL 45 Disc
- Tyres: Schwalbe One Performance 700c x 28c
Note: Levita handlebars are available upon request Spec may be subject to change due to availability |
